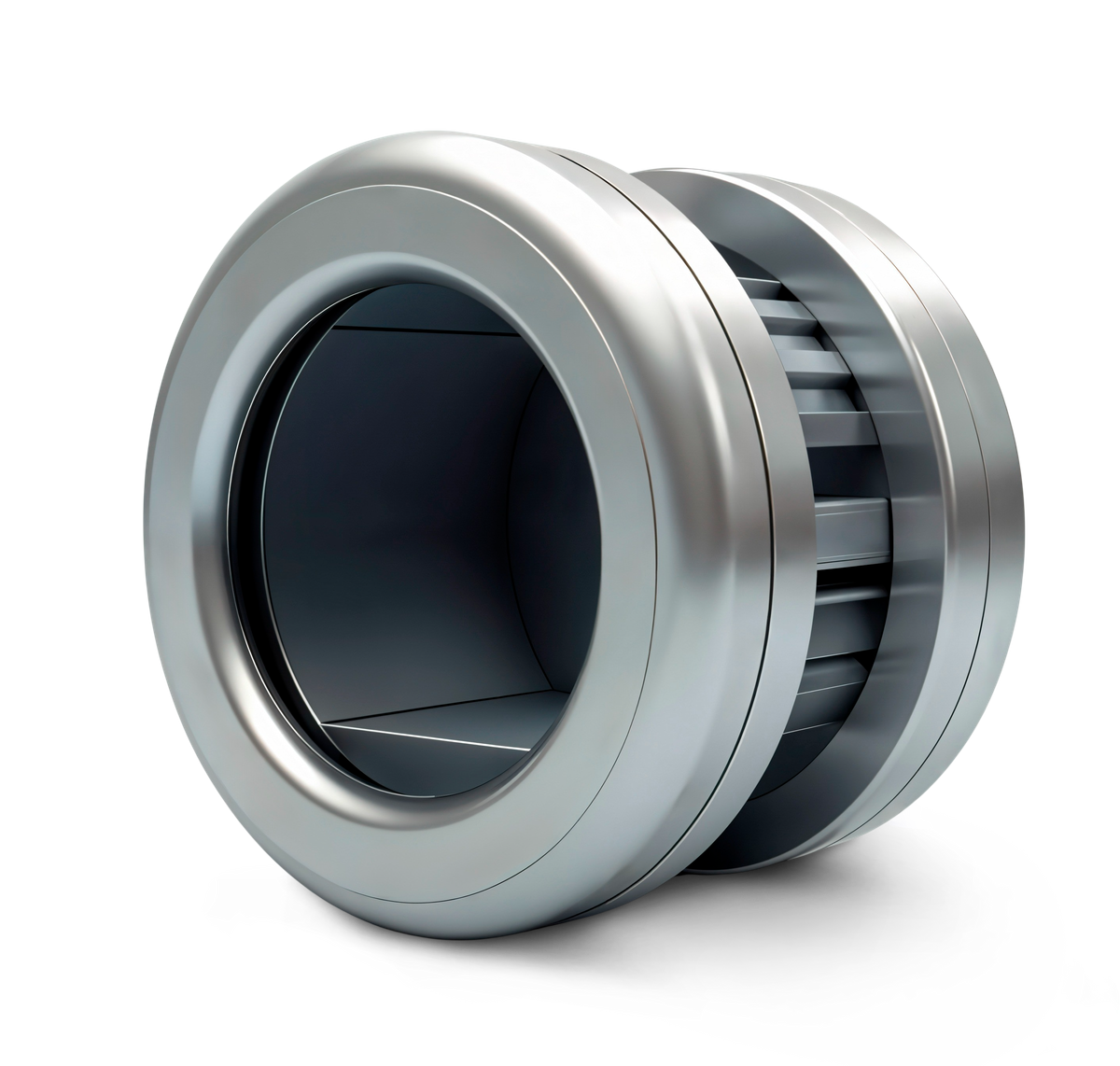

Bearing Construction

The Midnight Shutdown That Changed Everything

Marcus Delgado had been a maintenance engineer at a mid-sized packaging plant for eleven years when the call came at 2:47 AM on a Wednesday.

Line 4 was down. Not the "swap a belt and restart" kind of down. The catastrophic, metal-on-metal, bearing-has-disintegrated kind of down.

By the time Marcus arrived, the damage was extensive. A pillow block bearing on a critical conveyor drive shaft had seized. The cage had shattered first—a stamped steel separator that had been starved of lubrication for weeks. Without the cage holding the rolling elements apart, the balls bunched together, dragged across the inner race, generated heat beyond the steel's tempering threshold, and the entire assembly welded itself to the shaft.

Total cost of the failure: the bearing itself was worth about 45 units of currency. The unplanned downtime, emergency parts, overtime labor, scrapped product, and missed shipment penalties? Over 38,000 units of currency.

Marcus stood in the wreckage of Line 4 and made a decision that would transform him from a reactive parts-swapper into one of the most respected reliability engineers in his region. He decided to understand bearings—not just how to install them, but why they were constructed the way they were, what each material was designed to do, and how every component from the cage to the housing contributed to (or undermined) bearing life.

This is Marcus's journey. And by the end of it, you will know everything he learned.

Why Bearing Construction Knowledge Separates Amateurs from Experts

Here is the uncomfortable truth about bearing failures in industrial settings: the majority are not caused by defective bearings. They are caused by engineers and technicians who do not understand what they are installing.

You select a bearing material that cannot handle the thermal environment. You ignore the cage design and wonder why lubrication is inconsistent. You bolt a flanged housing bearing to a surface that is not flat and blame the manufacturer when the inner race cracks.

Every component of a bearing—the rolling elements, the races, the cage, the housing, the seals—exists for a reason rooted in metallurgy, tribology, and precision engineering. When you understand why each piece is constructed the way it is, you stop guessing and start engineering.

This guide covers the complete spectrum of bearing construction:

• Conventional Bearing Materials — The steels, alloys, and quality control processes that give rolling contact bearings their extraordinary precision
• Cage Materials — The separators that keep rolling elements in formation, and why cage failure is the silent killer of bearing life
• Flanged Housing Bearings — Pre-mounted pillow block and flange units that simplify installation but demand respect for alignment and fit
• Plastics Bearings — The rapidly evolving world of polymer-based rolling elements and plain bearings for corrosive, abrasive, and lubrication-starved environments

Let's begin where Marcus began: with the steel.

Conventional Bearing Materials: The Metallurgy Behind Precision

The Foundation — Full Hard Steel

Most rolling contact bearings are made with all load-carrying members fabricated from full hard steel, either through-hardened or case-hardened. This is not ordinary steel. This is material that has been controlled and selected for cleanliness and alloying practices in conformity with rigid specifications designed to reduce anomalies and inclusions that could limit the useful fatigue life of the bearing.

Think about what a rolling contact bearing actually does. A ball or roller, typically held to a diametral tolerance of 0.0001 inch or less within one bearing, repeatedly contacts a race under load. Every revolution creates a stress cycle. Over millions—sometimes billions—of revolutions, the material's resistance to rolling contact fatigue determines whether the bearing serves its full design life or fails prematurely.

Key Insight: Rolling contact bearings are so precisely manufactured that balls and rollers are often used as "gage" blocks in routine toolroom operations. That level of accuracy is not a luxury—it is essential to performance, durability, runout control, and smoothness of operation.

Quality Control: Magnaflux, Etching, and Beyond

The quality assurance chain for bearing steel involves multiple inspection stages:

• Magnaflux Inspection — Electromagnetic particle inspection ensures that rolling elements and races are free from both material defects and cracks. Even microscopic flaws in the subsurface can serve as nucleation points for spalling—the characteristic fatigue failure mode where small chips of hardened steel break away from the race surface.

• Light Etch Between Grinding Operations — A light etch is applied between rough and finish grinding to detect grinding burns caused by heavy stock removal and the associated decarburization in finished pieces. Decarburization—the loss of carbon from the steel surface due to excessive heat—creates a softer zone that cannot sustain the contact stresses the bearing was designed to carry.


Why Material Cleanliness Matters

The concept of "cleanliness" in bearing steel refers to the absence of non-metallic inclusions—oxides, sulfides, and silicates that form during the steelmaking process. These inclusions act as stress concentrators within the microstructure. Under the repeated Hertzian contact stresses of rolling element operation, an inclusion near the surface can initiate a subsurface crack that propagates upward until it reaches the race surface, producing a spall.

This is why premium bearing manufacturers specify:

• Vacuum-degassed steels — Removing dissolved gases reduces porosity and inclusion content
• Vacuum-remelted steels — Consumable electrode vacuum arc remelting (VAR) or electroslag remelting (ESR) produces exceptionally clean steel with dramatically improved fatigue life
• Controlled alloying practices — Precise chemistry control ensures consistent hardenability and microstructural uniformity

The Life Adjustment Factor for Material (a₂)

The AFBMA (Anti-Friction Bearing Manufacturers Association) standard life calculation includes a material life adjustment factor, a₂, that accounts for improvements in steel quality:

L_{10}' = a_2 \times L_{10}

Where:

• L_{10} = Rating Life (the life in millions of revolutions that 90% of a group of identical bearings will complete)
• a_2 = Material life adjustment factor
• L_{10}' = Adjusted Rating Life

Bearings fabricated from consumable vacuum-remelted steels have demonstrated extraordinarily long endurance. Specific values of a_2 for such steels are typically obtained from the bearing manufacturer, but they can be significantly greater than 1.0, meaning the same bearing geometry delivers multiples of its baseline fatigue life simply through improved material quality.

Through-Hardened vs. Case-Hardened: When to Use Which

For Marcus, the lesson was immediate. The bearing that failed on Line 4 was a standard through-hardened 52100 steel bearing—perfectly adequate for the application. The material was not the problem. The cage was.

Cage Materials: The Component Nobody Thinks About Until It's Too Late

What the Cage Actually Does

The cage—also called a separator or retainer—performs three critical functions:

1. Spaces the rolling elements evenly around the race, preventing them from contacting each other in the unloaded zone
2. Guides the rolling elements through the unloaded zone where they are not driven by race contact
3. Distributes lubricant by acting as a reservoir and transfer mechanism for oil or grease between the rolling elements and races

Marcus's failed bearing illustrated what happens when function #3 breaks down. When lubrication is marginal, the cage-to-rolling-element contact becomes the first friction point to suffer. The cage heats up, deforms, fragments, and the bearing's organized rolling motion collapses into chaos.

Critical Warning: It can never be overemphasized that no bearing can be designed to run continuously without lubrication. A good portion of all rolling bearing failures encountered can be traced to cage failures resulting from inadequate lubrication.

Standard Cage Materials

Standard bearings are normally made with cages of one of two materials:

• Free-machining brass — Excellent machinability, good corrosion resistance, moderate strength. Used in precision and medium-speed applications.
• Low carbon sulfurized steel — The sulfur content improves machinability while maintaining adequate strength. Common in industrial-grade bearings.

Commercial Grade Cages

Commercial bearings—the type found in most general industrial applications—usually rely on:

• Stamped steel — Sheet metal formed into a cage shape, with or without a phosphate treatment for corrosion resistance and improved lubricant retention
• Snap-in plastic or metallic cages — Lower cost, adequate for light-to-moderate loads at moderate speeds

High-Performance Cage Materials

When operating conditions push beyond the standard envelope—high speeds, intermittent lubrication, extreme temperatures, or corrosive environments—special cage materials become essential:

The Hierarchy of Cage Importance

Here is what most engineers get wrong about cages: so long as lubrication is adequate and speeds are both reasonable and steady, the materials and design of the cage are of secondary importance when compared with those of the rolling elements and their contacts with the races.

This creates a dangerous complacency. Engineers spec the rolling elements and race material carefully, then accept whatever cage comes standard. The problem is that "adequate lubrication" and "reasonable speeds" describe ideal conditions—and real-world conditions are rarely ideal.

When lubrication degrades, when speeds fluctuate, when temperatures spike, or when contamination enters the bearing—the cage is the first component to fail. And when the cage fails, everything fails.

Marcus's Rule for Cage Selection

After the Line 4 disaster, Marcus developed a personal protocol:

1. If the application will always have perfect lubrication → Standard stamped steel cage is acceptable
2. If lubrication might be intermittent → Specify brass or bronze cage minimum
3. If the environment is corrosive or the bearing is difficult to access → Specify phenolic, PTFE-coated, or carbon-graphite cage
4. If the application is high-speed (DN value > 500,000) → Consult the bearing manufacturer for cage optimization
5. If in doubt → Upgrade the cage. It is almost always the cheapest insurance policy available.

Flanged Housing Bearings: Pre-Mounted Simplicity with Hidden Complexity

What Are Flanged Housing Bearings?

Of great interest to the shop engineer—and particularly adaptable to line-shafting applications—are a series of ball and roller bearings supplied with their own housings, adapters, and seals. Often called pre-mounted bearings, they come with a wide variety of flange mountings permitting location on faces parallel to or perpendicular to the shaft axis.

These are the ubiquitous pillow blocks and flange units that you see bolted to equipment frames throughout every manufacturing plant, processing facility, and material handling system in the world.

Mounting Options

Flanged housing bearings offer two primary mounting approaches:

Direct Mount on Ground Shafts:

• Inner races mount directly on precision-ground shafts
• Provides the best concentricity and balance
• Recommended for installations sensitive to imbalance and vibration

Adapter Mount:

• Inner races are adapter-mounted to "drill-rod" or commercial shafting
• Simplifies installation on non-precision shafts
• Acceptable for moderate-speed, moderate-precision applications
• Uses a tapered adapter sleeve and locknut to grip the shaft

The Self-Aligning Advantage

Most pillow block designs incorporate self-aligning types of bearings, which means they do not require the precision mountings utilized with more conventional bearing installations.

This is both a blessing and a potential trap:

The Blessing:

• Compensates for minor misalignment between shaft and housing
• Simplifies installation
• Reduces sensitivity to thermal expansion and foundation settling

The Trap:

• Engineers sometimes interpret "self-aligning" as "alignment doesn't matter"
• Excessive misalignment still generates internal loads that reduce bearing life
• Self-aligning capability compensates for static misalignment, not dynamic shaft deflection

Housing Design Considerations

The housing itself is a critical structural element. Several engineering principles govern proper housing design:

Wall Sections and Rigidity:

• There should be plenty of metal in wall sections
• Large, thin areas should be avoided—they are likely to permit deflection of the boring tool during finish machining
• Deflection under load can cause the outer race to distort, creating stress concentrations that reduce fatigue life

Load Path:

• The radial load placed on the bearing should be transmitted as directly as possible to the wall or rib supporting the housing
• Diaphragm walls connecting an offset housing to the main wall are apt to deflect unless made thick and well braced
• When two bearings are mounted opposed in separate housings, the housings should be reinforced with fins or webs to prevent deflection from axial preload

Machining Precision:

• When housings are deep and considerable overhang of the boring tool is required, there is a tendency to produce out-of-roundness and taper
• The boring tool must be very rigid, and light finishing cuts must be taken
• In a roughly bored housing, ridges of metal can peen down under load, eventually resulting in a loose fit for the bearing outer ring

Soft Metal and Resilient Housings: A Special Warning

Applications relying on housings made from soft materials—aluminum, magnesium, light sheet metal—or those which lose their fit because of differential thermal expansion require extreme caution.

The critical concern is outer race loosening and turning. The type of loading must be considered because it can magnify the effect of race loosening:

• Balancing processes do not ensure zero unbalance at operating speeds—they ensure an "acceptable" maximum
• This rotating unbalance force can initiate a precession (wobbling rotation) that aggravates race loosening through wear, pounding, and abrasion
• Since this force is generally of an order greater than the friction forces between the outer race, housing, and closures, no foolproof method exists for securing outer races in housings that deform significantly

The Only Sure Solution: Press the race into a housing of sufficient stiffness with the heaviest fit consistent with installed and operating clearances. In many cases, inserts or liners of cast iron or steel are provided to maintain the desired fit and increase useful life of both bearing and housing.

Plastics Bearings: The Revolution in Corrosive, Abrasive, and Lubrication-Starved Environments

Two Distinct Categories

The term "plastics bearings" actually encompasses two very different categories of components, and understanding the distinction is essential:

1. Plastics Rolling Contact Bearings (Anti-Friction Type)

• Use Acetal resin rollers and balls instead of steel
• Applied where abrasive, corrosive, and difficult-to-lubricate conditions exist
• Do not match the load capacity or low friction of hard steel counterparts
• Offer freedom from indentation, wear, and corrosion with significant weight savings

2. Plastics Plain Bearings (Sliding Type)

• Use polymer materials as the bearing surface in a journal/sleeve configuration
• Include phenolics, nylon, Teflon (TFE), polycarbonate, and composites
• Finding increased use due to corrosion resistance, quiet operation, and self-lubricating properties
• Can be molded into virtually any configuration

Plastics Rolling Contact Bearings — Acetal Resin Technology

Acetal resin (polyoxymethylene or POM) rolling elements offer specific advantages that no steel bearing can match:

Advantages:

• Resistance to indentation from shock loads or oscillation — Where steel elements would brinell the raceway, acetal elements absorb the energy elastically
• Self-lubricating properties — Reduces or eliminates the need for external lubrication
• Corrosion immunity — Operates in chemical environments that would destroy steel
• Weight savings — Significant mass reduction for weight-sensitive applications
• Non-magnetic — Suitable for MRI environments, sensitive instrumentation, and degaussing applications

Limitations:

• Lower load-carrying capacity than hardened steel
• Higher friction coefficient than precision steel bearings
• Not available from stock in most cases—must be designed and produced in accordance with plastics processor data
• Temperature range more limited than steel

Plastics Plain Bearings — The Material Spectrum

This is where the plastics bearing story becomes truly rich. Multiple polymer families serve as bearing materials, each with distinct strengths and operating envelopes:

Laminated Phenolics

These composite materials consist of cotton fabric, asbestos, or other fillers bonded with phenolic resin.

Strengths:

• Excellent compatibility with various fluids
• Good strength and shock resistance
• Chemical resistance to acids and alkalies (except highly concentrated)

Critical Weakness:

• Low thermal conductivity — Precautions must be taken to maintain adequate bearing cooling. Heat generated at the bearing surface cannot dissipate quickly through the material, creating the risk of thermal runaway.

Lubrication:

• Water is used to lubricate most phenolic laminate bearings
• Oil, grease, and emulsions of grease and water are also used

Clearances:

• Phenolic bearings absorb water and oil, causing dimensional changes of up to 3% in one direction
• Bearings must be pre-treated before use (e.g., boiling in water for water-lubricated applications) to achieve maximum swell before installation
• Clearances are maintained at approximately 0.001 inch per inch of diameter on treated bearings

Nylon (Polyamide)

Nylon has the widest use for small, lightly loaded applications among all bearing plastics.

Key Properties:

• Low frictional properties
• Requires no lubrication
• Good chemical resistance
• Easy to mold into complex shapes
• Water and oil can be used as lubricants

Clearances:

• Partially lubricated or dry nylon bearings require 0.004 to 0.006 inches of clearance for a one-inch diameter bearing—significantly more than metal bearings

Teflon (PTFE / TFE)

Teflon occupies a unique position in the bearing material hierarchy. With its exceptional low coefficient of friction, self-lubricating characteristics, resistance to attack by almost any chemicals, and wide temperature range, it is one of the most interesting plastics for bearing use.

The Cost-Performance Paradox: High cost combined with low load capacity cause Teflon to be selected mostly in modified form—filled, reinforced, or bonded to substrates—where other less expensive materials have proved inadequate.

Teflon Variants for Bearing Applications:

Note the dramatic difference: virgin Teflon can only handle 500 psi at 50 fpm, while TFE fabric bonded to a backing material can sustain 60,000 psi—a 120× improvement in load capacity.

The Complete Bearing Material Comparison Table

This is the reference table that Marcus kept laminated in his toolbox for the rest of his career:

Understanding the PV Limit

The PV limit is one of the most important design parameters for plastics and self-lubricating bearings:

PV = P \times V

Where:

• P = Unit bearing pressure in psi (force per unit projected area)
• V = Surface velocity in feet per minute

The PV limit represents the maximum product of pressure and velocity that the material can sustain without excessive wear, heat buildup, or failure. It is a thermal limit—higher PV means more frictional heat generation, and every material has a ceiling.

How to Use the PV Limit in Design:

1. Calculate the bearing pressure: P = \frac{F}{d \times L} (where F is load, d is shaft diameter, L is bearing length)
2. Calculate surface velocity: V = \frac{\pi \times d \times N}{12} (where d is shaft diameter in inches, N is RPM)
3. Multiply: PV = P \times V
4. Compare the result against the material's PV limit
5. The calculated PV must be below the material's PV limit with an appropriate safety factor

Sintered Metal Bearings: The Self-Lubricating Workhorses

How Sintered Bearings Work

While technically metallic rather than plastic, sintered metal bearings are so closely related to plastics bearings in application space that understanding them is essential for any bearing construction discussion.

Porous metal self-lubricating bearings are made by sintering metals such as plain or leaded bronze, iron, and stainless steel. The sintering process produces a sponge-like structure capable of absorbing fairly large quantities of oil—usually 10–35% of the total volume.

When the bearing operates:

1. Shaft rotation and heat cause oil to seep from the pores to the bearing surface
2. The oil forms a hydrodynamic film between shaft and bearing
3. When the shaft stops, capillary action draws oil back into the pores
4. The cycle repeats with each start-stop event

Chemical Composition — ASTM Standards

Sintered bearings are manufactured to precise ASTM specifications (B438-83a for copper-base, B439-83 for iron-base):

Copper-Base Sintered Bearings:

Iron-Base Sintered Bearings:

Running Clearances for Sintered Bearings

Proper clearance is critical for sintered bearing performance. Too tight, and the oil cannot form a film. Too loose, and the hydrodynamic pressure drops below the level needed to support the load.

Minimum Running Clearances (Oil-Impregnated, Ground Steel Shafting):

Dimensional Tolerances

Copper-Base Bearings:

Iron-Base Bearings:

Design Note: Copper-base bearings are specified for a maximum length-to-diameter ratio of 4:1 and a maximum length-to-wall-thickness ratio of 24:1. Iron-base bearings are specified for a 3:1 length-to-diameter ratio and a 20:1 length-to-wall-thickness ratio. Bearings with greater ratios fall outside standard specifications.

Flange and Thrust Bearing Tolerances

For flanged configurations of sintered bearings:

Face Parallelism:

Cost Warning: Special tolerances should not be specified unless required, because they require additional or secondary operations and are therefore costlier.

Carbon-Graphite Bearings: Extreme Environment Specialists

When Nothing Else Survives

Carbon-graphite bearings occupy a narrow but critical niche: applications where regular maintenance and lubrication cannot be given, and where temperatures exceed the limits of polymer materials.

Core Properties:

• Dimensionally stable over a wide range of temperatures
• May be lubricated if desired, but do not require it
• Not affected by chemicals
• Operational up to 700–750°F in air or 1,200°F in non-oxidizing atmosphere

Two Types of Carbon-Graphite Bearings

Pure Carbon-Graphite:

• Maximum load: 20 psi (without lubrication)
• Self-lubricating through graphite transfer to the shaft surface
• Temperature limited only by oxidation in air

Metal-Impregnated Carbon-Graphite:

• A metal or metal alloy is added to improve compressive strength and density
• Maximum load: 350 psi (dry) or 600 psi (lubricated)
• Temperature limitation depends on the melting point of the impregnating metal

Running Clearances for Carbon-Graphite Bearings

These clearances are for use with steel shafts at operating temperatures below 200°F:

Shaft Requirements

Carbon-graphite bearings are abrasion-sensitive. Rough journal surfaces will rapidly degrade the bearing. Recommended shaft specifications:

• Cast iron shafts: Hard chromium-plated, 400 Brinell and over
• Steel shafts: Hard chromium-plated, 400 Brinell and over
• Phosphor-bronze shafts: Over 135 Brinell
• Surface finish: Smooth—rough journals tend to abrade these bearings quickly

The Standard Method of Bearing Designation: Speaking the Universal Language

The AFBMA Identification Code

The Anti-Friction Bearing Manufacturers Association adopted a standard identification code that provides a specific designation for each different ball, roller, and needle bearing. This eliminates the confusion of different company-specific designations.

The Basic Number

Every bearing has a basic number consisting of three elements:

1. Bore designator — A one- to four-digit number indicating bore size in millimeters (metric series)
2. Type symbol — A two- or three-letter code indicating the bearing type
3. Dimension series — A two-digit number identifying the dimension series

The Supplementary Number

Additional letters and digits are appended to designate:

• Type of tolerance
• Cage material and design
• Lubrication and preservatives
• Fit-up specifications
• Ring modifications
• Shields, seals, and mounting accessories

Example designation: 50BC02JPXE0A10

• Basic number: 50BC02 (50mm bore, BC-type ball bearing, 02 dimension series)
• Supplementary: JPXE0A10 (specific cage, tolerance, lubrication, and special requirements)

Supplementary Number Structure by Bearing Type

Radial Bearings:

• Up to four letters → Design modification
• One or two digits → Internal fit and tolerances
• One letter → Lubricants and preservatives
• Up to three digits → Special requirements

Thrust Bearings:

• Two letters → Design modifications
• One digit → Tolerances
• One letter → Lubricants and preservatives
• Up to three digits → Special requirements

Needle Bearings:

• Up to three letters → Cage material, integral seal, or crowned outside surface
• One letter → Lubricants or preservatives

Dimension Series Explained

Annular ball, cylindrical roller, and self-aligning roller bearings are manufactured in a series of different outside diameters for every given bore diameter, and in a series of different widths for every given outside diameter. Each bearing belongs to a dimension series designated by a two-digit number:

• First digit (8, 0, 1, 2, 3, 4, 5, 6, 9) → Width series
• Second digit (7, 8, 9, 0, 1, 2, 3, 4) → Diameter series

For example, a bearing in dimension series "02" belongs to width series "0" and diameter series "2."

Bearing Tolerances: The Five Classes of Precision

ABEC and RBEC Tolerance Classes

Five classes of tolerances have been established for ball bearings, three for cylindrical roller bearings, and one for spherical roller bearings:

ABEC-9 is the most precise class. Higher precision classes are generally required because of the need for:

• Very precise fits on shaft or housing
• Reduced eccentricity or runout of shaft or supported part
• Operation at very high speeds

What the Tolerance Classes Control

All five classes include tolerances for:

• Bore diameter (inner ring)
• Outside diameter (outer ring)
• Ring width
• Radial runouts of inner and outer rings

The higher precision classes (ABEC-5 and above) add tolerances for:

• Parallelism of sides
• Side runout
• Groove parallelism with sides

Sample ABEC-1 / RBEC-1 Tolerances

For a bearing with a bore diameter of 30–50mm:

For comparison, ABEC-9 tolerances for the same bore range:

The ABEC-9 tolerances are approximately 6× tighter than ABEC-1—a substantial improvement in precision that comes at a correspondingly substantial increase in cost.

Bearing Life: Understanding the Numbers

The Rating Life Formula

The foundation of bearing selection is the Rating Life calculation. For ball bearings:

L_{10} = \left(\frac{C}{P}\right)^3

For roller bearings:

L_{10} = \left(\frac{C}{P}\right)^{10/3}

Where:

• L_{10} = Rating Life in millions of revolutions (90% reliability)
• C = Basic load rating (newtons or pounds)
• P = Equivalent radial load (newtons or pounds)

Life Adjustment Factors

The complete adjusted life formula incorporates three modification factors:

L_{10}' = a_1 \times a_2 \times a_3 \times L_{10}

Where:

Reliability Adjustment Factors (a₁):

Critical Warning: Indiscriminate application of the life adjustment factors may lead to serious overestimation of bearing endurance, since fatigue life is only one criterion for bearing selection. Care must be exercised to select bearings of sufficient size for the application.

Typical Design Life Targets

Bearing Mounting Practice: Where Knowledge Meets the Real World

The DN Value Rule

Because of their inherent design and material rigidity, rolling contact bearings must be mounted with careful control of alignment and runout. The DN value serves as the speed parameter:

DN = D \times N

Where:

• D = Bearing bore in millimeters
• N = Bearing speed in RPM

Mounting precision requirements scale with DN value:

• Medium-speed (DN ≤ 400,000) with moderate load (C/P ≥ 7): Can tolerate alignments equivalent to precision journal bearings
• Higher DN values or heavier loads: Progressively tighter alignment control required

Maximum Shaft Deflection Limits

Race Squareness Requirements

For commercial applications with moderate life and reliability:

• Outer race runout: Hold to 0.0005" per inch of radius
• Inner race runout: Hold to 0.0004" per inch of radius
• For preloaded and precision applications: Cut these tolerances in half

The Most Common Causes of Premature Bearing Failure

Based on the accumulated engineering wisdom:

1. Inadequate lubrication — The single most frequent cause
2. Improper mounting and uncontrolled shaft deflections — The second most frequent cause
3. Contamination — Abrasive particles accelerate surface damage
4. Overloading — Exceeding the bearing's rated capacity
5. Incorrect fits — Too tight reduces internal clearance; too loose allows race creep

Marcus's Transformation: From Reactive to Proactive

Six months after the Line 4 disaster, Marcus had transformed his approach entirely. He had:

• Audited every bearing installation in the plant, checking cage materials against actual operating conditions
• Replaced standard stamped-steel cages with brass cages on all bearings in marginal-lubrication applications
• Installed condition monitoring on critical pillow block bearings to detect lubrication degradation before cage failure
• Created a bearing specification standard that required maintenance engineers to document the application environment—temperature, contamination level, lubrication method, and speed—before ordering replacement bearings
• Converted three chemical-environment applications from steel bearings to reinforced Teflon plain bearings, eliminating a recurring corrosion failure mode

The result? Unplanned bearing-related downtime dropped by 74% in the first year.

The bearing itself was never the problem. The problem was not understanding what the bearing was made of, and why.

Your Action Step

Here is your challenge: Pick one bearing in your facility, your project, or your current design—and answer these five questions:

1. What material are the rolling elements and races made from? Is it adequate for the operating temperature and environment?
2. What is the cage material? Would an upgrade provide insurance against lubrication interruptions?
3. If it's a flanged housing bearing, is the mounting surface flat and rigid enough to prevent outer race distortion?
4. Could a plastics bearing eliminate a recurring corrosion or contamination problem?
5. What is the actual PV value of the application, and does it fall safely below the material's PV limit?

If you cannot answer all five, you are operating on hope—not engineering.

And as Marcus learned at 2:47 AM on that Wednesday, hope is not a maintenance strategy.

This guide was built from authoritative engineering reference data including AFBMA standards, ASTM specifications (B438-83a, B439-83), and ANSI/ABMA standards for bearing tolerances, load ratings, and fatigue life calculations. All dimensional data, chemical compositions, and performance limits reflect published industry standards.
